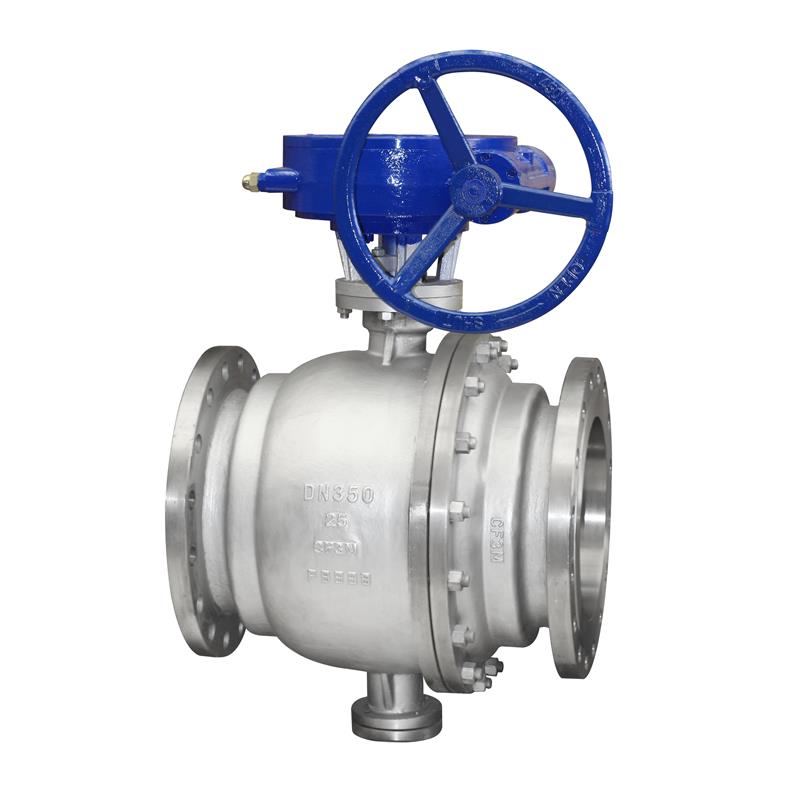

Fixed Flange Ball Valve

Fixed Ball Design:

The ball is fixed in place, reducing wear on the seats and ensuring long-term reliability.

Ideal for high-pressure and high-temperature applications.

Flanged Ends:

ANSI/ASME, DIN, or EN flanged connections for easy installation and maintenance.

Ensures a secure and leak-proof connection to pipelines.

Robust Construction:

Made from high-quality materials such as carbon steel, stainless steel, and alloy steel.

Suitable for corrosive, abrasive, and high-pressure environments.

Full Bore or Reduced Bore:

Full bore design for minimal pressure drop and pigging capability.

Reduced bore for standard applications.

Fire-Safe Design:

Compliant with API 607, API 6FA, and ISO 10497 for fire-safe applications.

Sealing Options:

Soft seats (PTFE, reinforced PTFE) for bubble-tight sealing.

Metal-to-metal seats for high-temperature and abrasive services.

Operational Flexibility:

Available in manual, pneumatic, hydraulic, and electric actuation options.

• Oil and gas pipelines
• Refining and petrochemical plants
• Water and wastewater treatment
• Power generation
• Chemical and industrial processing
• Marine and offshore applications

• Durability: Designed for long service life in harsh conditions.
• Reliability: Ensures leak-proof performance and tight shut-off.
• Versatility: Suitable for a wide range of fluids, including corrosive and abrasive media.
• Ease of Installation: Flanged ends simplify installation and maintenance.
• Compliance: Meets international standards such as API, ASME, DIN, and EN.

Size Range: 1/2" to 48"

Pressure Rating: Class 150 to Class 2500 (ANSI), PN10 to PN420 (DIN)

Temperature Range: -50°C to 200°C (depending on materials)

Standards: API 6D, API 608, ASME B16.34, ISO 17292, DIN 3202

Why Choose Fixed Flanged Ball Valves?

Fixed Flanged Ball Valves are engineered for superior performance in demanding applications.  Their robust construction, reliable sealing, and compliance with international standards make them a trusted choice for industries worldwide.  Whether for onshore or offshore use, these valves ensure safety, efficiency, and operational excellence.
