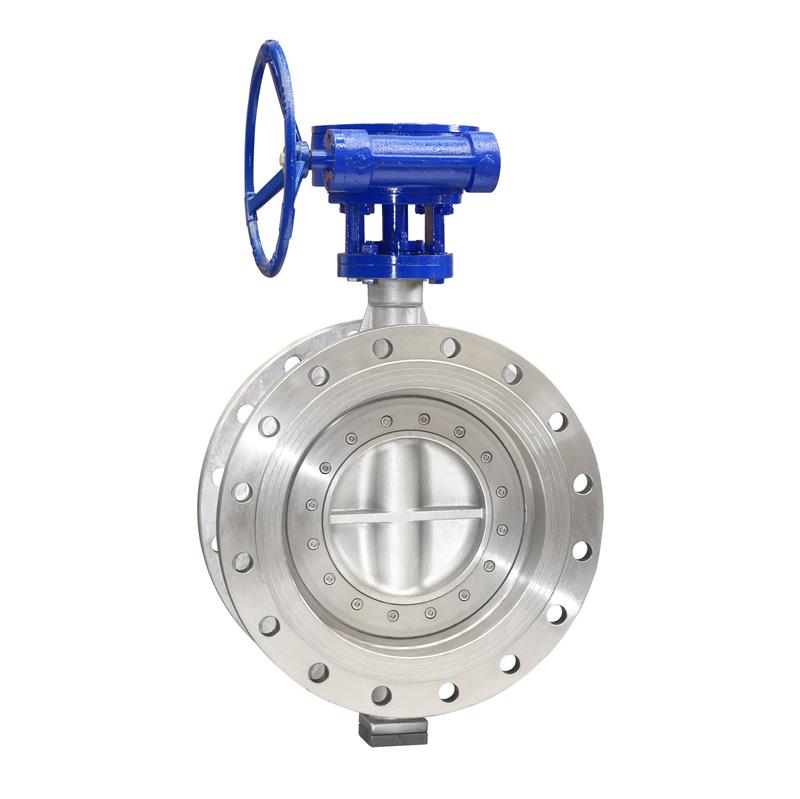

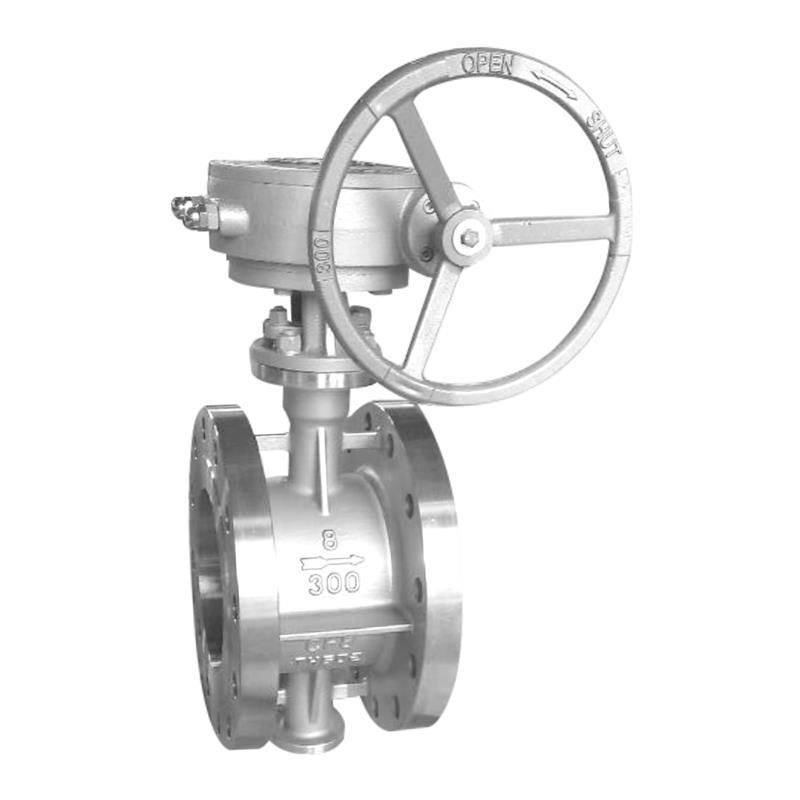

Worm Gear Stainless Steel Butterfly Valve

• Stainless Steel Construction: The valve body is made from high-quality stainless steel, ensuring corrosion resistance, durability, and long service life, even in aggressive environments.
• Worm Gear Actuator: The worm gear actuator allows for smooth and precise operation by reducing the effort required to open or close the valve. This actuator is ideal for applications that require precise flow control and durability.
• Compact Design: The butterfly valve design is compact and lightweight, making it easy to install and integrate into a variety of pipeline systems.
• Reliable Sealing Performance: Equipped with high-quality seals and seat materials, the valve offers excellent sealing performance and tight shut-off, minimizing leakage even in high-pressure applications.
• Bidirectional Flow: The valve is designed for bidirectional flow, providing flexibility in installation and use across various systems and applications.
• Low Torque Requirement: The worm gear actuator reduces the required torque for valve operation, making it ideal for use in systems where high torque is not feasible or desired.
• Versatile Applications: Suitable for use in various industries, including water treatment, chemical processing, oil & gas, HVAC, and more.
• Temperature and Pressure Resistance: Capable of withstanding a wide range of temperatures and pressures, making it ideal for diverse applications.

• Water Treatment: Used for regulating the flow of water in filtration, treatment plants, and pumping stations.
• Oil & Gas: Ideal for controlling the flow of oil, natural gas, or other hydrocarbons in pipelines, refineries, and offshore platforms.
• Chemical Processing: Provides reliable flow control in the processing of chemicals, acids, and other corrosive fluids.
• HVAC Systems: Used in heating, ventilation, and air conditioning systems for air or fluid regulation.
• Power Generation: Employed in cooling systems and steam lines in power plants for precise flow control.
• Food and Beverage: Suitable for use in food production lines, ensuring safe and clean fluid control in processing systems.

1. Corrosion Resistance:
   • The stainless steelbody provides excellent protection against corrosion and rust, even in harsh chemical or high-moisture environments.
2. Precise Flow Control:
   • The worm gear actuatorallows for precise and smooth operation, making it easy to adjust and maintain the desired flow rate.
3. Durability and Long Service Life:
   • Made from high-quality stainless steel, this valve is designed for long-term usein demanding environments, reducing the need for frequent maintenance or replacement.
4. Minimal Maintenance:
   • The valve’s simple designand durable materials reduce the need for regular maintenance, offering a cost-effective solution for long-term operation.
5. High-Temperature and Pressure Tolerance:
   • This valve can withstand a wide range of temperatures (from -20°C to 200°Cor higher, depending on the materials) and pressures, making it suitable for diverse applications.
6. Bidirectional Flow:
   • The valve is capable of handling bidirectional flow, offering flexibility in system design and installation.
7. Compact and Easy to Install:
   • The compact butterfly valve designallows for easy installation in tight spaces, while the flanged connections ensure a secure, leak-proof seal.

• Size Range: Available from DN50 (2") to DN1200 (48"), with custom sizes available to meet project-specific needs.
• Pressure Rating: Suitable for working pressures up to PN10, PN16, or higher, depending on material and design specifications.
• Temperature Range: Operates within a temperature range of -20°C to 200°C(or higher, depending on material selection).
• Materials: Body material is stainless steel(304, 316, or other grades available), with stainless steel or PTFE sealing options.
• Actuation Type: Equipped with a worm gear actuatorfor smooth and precise operation. Electric or pneumatic actuators can be installed upon request.
• Flanged Connections: Standard flanged connections conforming to ISO 5211, ANSI, or DINstandards, ensuring compatibility with most pipeline systems.
• Sealing Materials: Available with EPDM, Viton, NBR, or PTFEseat options for compatibility with a wide range of media and operating conditions.

The Worm Gear Stainless Steel Butterfly Valve operates by rotating the butterfly disc within the valve body to regulate the flow of fluid. The worm gear actuator provides a mechanical advantage, reducing the torque required to operate the valve. As the actuator turns, the butterfly disc rotates 90 degrees, allowing or restricting flow through the pipeline. When the valve is fully closed, the disc provides a tight seal, preventing leakage and ensuring reliable shutoff.

Why Choose Our Worm Gear Stainless Steel Butterfly Valve?

• High Performance: Designed to provide precise control and reliable operation, even in high-pressure, high-temperature, or corrosive environments.
• Durability: Made from stainless steel, this valve offers outstanding resistance to corrosion, wear, and thermal expansion, ensuring long-term durability.
• Smooth Operation: The worm gear actuatorensures smooth and easy operation, even in applications requiring high torque.
• Versatile Use: Ideal for a wide range of industries and applications, from water treatment to chemical processing, providing flexible and reliable flow control solutions.
• Cost-Effective: The valve offers excellent performance, reliability, and durability at an affordable price, making it an ideal choice for long-term use.
