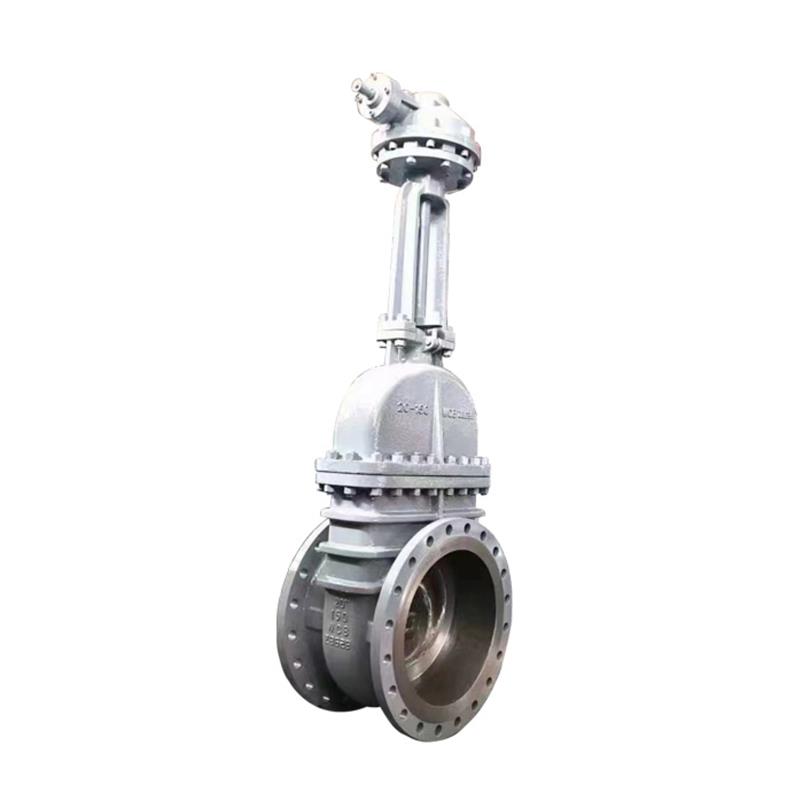

API Cast Steel Bevel Gear Gate Valve

The API Cast Steel Bevel Gear Gate Valve is a high-performance valve designed for industrial applications requiring reliable shut-off and flow control. It is manufactured in compliance with API standards (API 600, API 602, or API 603) to ensure durability, safety, and efficiency. The valve features a bevel gear mechanism for smooth operation, especially in high-pressure or large-diameter applications.
  • Material: Cast steel (e.g., ASTM A216 WCB, WCC, LCB, etc.)
  • Design: Bolted bonnet, pressure seal, or welded bonnet options
  • Operation: Bevel gear-operated for easy handling in high-torque scenarios
  • Seat and Disc: Hard-faced or soft-seated for tight shut-off
  • End Connections: Flanged, threaded, or butt-welded
  • Standards: API 600, API 602, API 603, ASME B16.34, ANSI B16.10
  • Applications: Oil and gas, petrochemical, power generation, water treatment, and more

Parameter

Details

Size Range

2" to 48" (DN50 to DN1200)

Pressure Rating

Class 150 to Class 2500 (PN16 to PN420)

Temperature Range

-29°C to 425°C (-20°F to 800°F)

Body Material

ASTM A216 WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, etc.

Trim Material

13% Cr, SS304, SS316, Stellite, Monel, Inconel, etc.

Seat Type

Metal-to-metal or resilient seated

Stem Material

SS410, SS304, SS316, Alloy 20, etc.

Gear Operator

Bevel gear with handwheel or motorized actuator

End Connections

Flanged (ASME B16.5, B16.47), threaded (NPT, BSP), butt-weld (ASME B16.25)

Leakage Class

API 598 (Class IV, V, or VI)

Standards Compliance

API 600, API 602, API 603, ASME B16.34, ANSI B16.10

Testing

Hydrostatic, shell, and seat testing per API 598

  • Durability: High-quality cast steel construction ensures long service life.
  • Ease of Operation: Bevel gear mechanism reduces operating torque.
  • Versatility: Suitable for a wide range of temperatures and pressures.
  • Leakage Prevention: Tight shut-off with metal-to-metal or resilient seating.
  • Compliance: Meets international standards for safety and performance.
  • Oil & Gas: Pipeline systems, refineries, and offshore platforms.
  • Petrochemical: Chemical processing and storage.
  • Power Generation: Steam and cooling water systems.
  • Water Treatment: High-pressure water pipelines.
  • General Industry: Heavy-duty industrial applications.



Why Choose Us?
Expertise: Decades of experience in valve manufacturing.
Quality Assurance: Rigorous testing to ensure reliability and performance.
Global Reach: Serving clients in over 50 countries.
Customer Support: Dedicated team for technical assistance and after-sales service.
