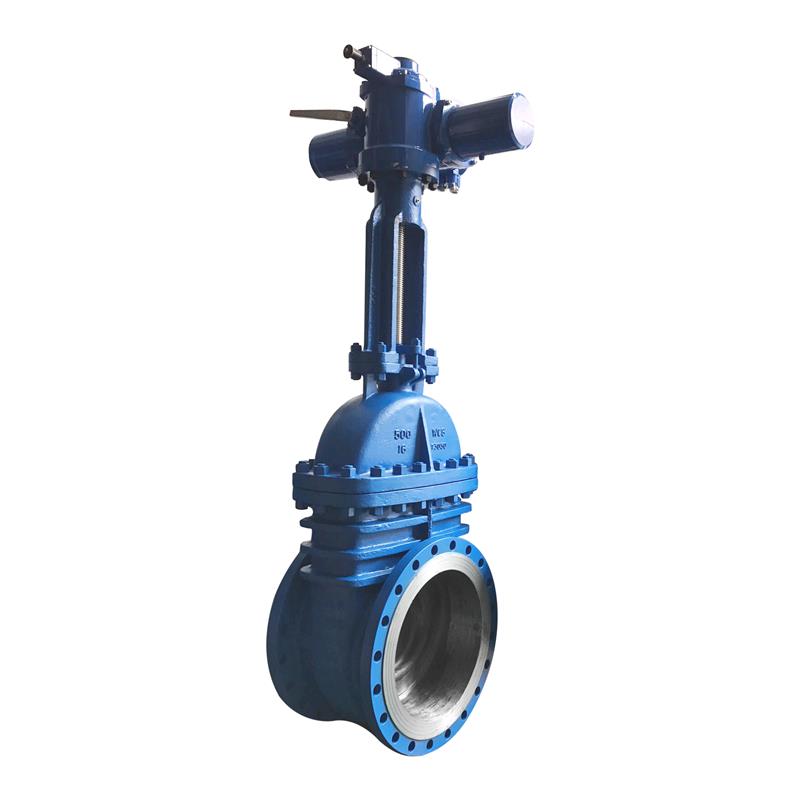

Electric American Standard Gate Valve

The Electric American Standard Gate Valve is an advanced, electrically actuated valve designed for automated flow control in industrial applications. It complies with American standards such as ASME, ANSI, and API, ensuring high performance, reliability, and safety. The electric actuator allows for remote operation, making it ideal for systems requiring frequent or precise valve adjustments.
  • Material: Carbon steel, stainless steel, or alloy steel (ASTM standards).
  • Design: Bolted bonnet, pressure seal, or welded bonnet options.
  • Actuation: Electric motor-operated for automated control.
  • Seat and Disc: Metal-to-metal or resilient seating for tight shut-off.
  • End Connections: Flanged (ASME B16.5 or B16.47), threaded, or butt-welded.
  • Standards: ASME B16.34, ANSI B16.10, API 600.
  • Applications: Oil and gas, water treatment, power generation, and more.

Parameter

Details

Size Range

2" to 48" (DN50 to DN1200)

Pressure Rating

Class 150 to Class 2500 (PN16 to PN420)

Temperature Range

-29°C to 425°C (-20°F to 800°F)

Body Material

ASTM A216 WCB, WCC, LCB, LCC, WC6, WC9, C5, C12, etc.

Trim Material

13% Cr, SS304, SS316, Stellite, Monel, Inconel, etc.

Seat Type

Metal-to-metal or resilient seated

Stem Material

SS410, SS304, SS316, Alloy 20, etc.

Actuator Type

Electric motor-operated (on/off or modulating)

Voltage

24V DC, 110V AC, 220V AC, 380V AC, etc.

End Connections

Flanged (ASME B16.5, B16.47), threaded (NPT, BSP), or butt-weld (B16.25)

Leakage Class

API 598 (Class IV, V, or VI)

Standards Compliance

ASME B16.34, ANSI B16.10, API 600

Testing

Hydrostatic, shell, and seat testing per API 598

  • Automated Operation: Electric actuator enables remote and precise control.
  • Durability: High-quality materials ensure long service life in demanding environments.
  • Tight Shut-Off: Reliable sealing with metal-to-metal or resilient seating.
  • Versatility: Suitable for a wide range of temperatures and pressures.
  • Compliance: Meets American and international standards for safety and performance.
  • Oil & Gas: Pipeline systems, refineries, and offshore platforms.
  • Water Treatment: High-pressure water pipelines.
  • Power Generation: Steam and cooling water systems.
  • Chemical Industry: Handling corrosive fluids and chemicals.
  • General Industry: Automated flow control in industrial processes.



Why Choose Us?
Expertise: Decades of experience in valve manufacturing.
Quality Assurance: Rigorous testing to ensure reliability and performance.
Global Reach: Serving clients in over 50 countries.
Customer Support: Dedicated team for technical assistance and after-sales service
