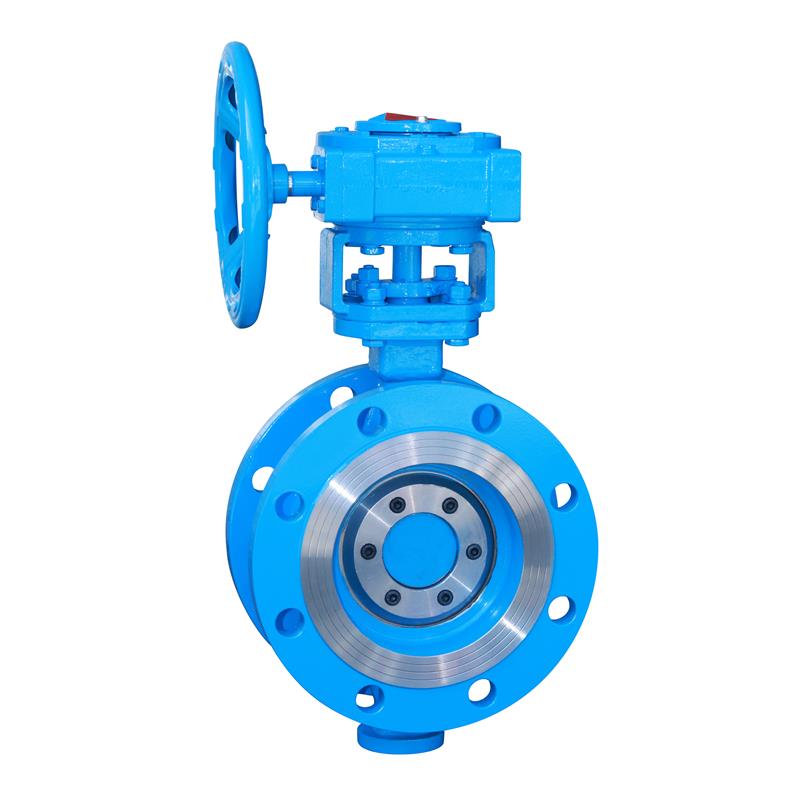

Flanged Multi-Level Metal Hard Sealing Butterfly Valve

• Multi-Level Metal Hard Sealing: The valve features advanced metal-to-metal sealing technologywith multiple sealing surfaces, ensuring tight shut-off and long-lasting sealing performance even under high pressure and temperature conditions.
• Flanged Design: The flanged connection enables easy installation and maintenance, offering a strong, leak-proof seal for various pipeline sizes and applications.
• High Durability: Designed to withstand extreme temperatures(-196°C to 550°C) and high pressures, this valve is ideal for heavy-duty industrial use.
• Corrosion and Wear Resistance: Made from high-quality materials such as stainless steel, this valve is resistant to corrosion, erosion, and wear, making it suitable for aggressive media such as chemicals, oils, and gases.
• Precise Flow Control: Provides excellent control over the flow of liquids, gases, and slurries, with a robust design that ensures reliability in continuous operation.
• Low Maintenance: The metal hard sealing design reduces wear and minimizes the need for frequent maintenance, making it a cost-effective solution for long-term use.
• Bidirectional Flow: The valve is designed for bidirectional flow, ensuring flexibility in installation and operation across various applications.
• Fire-Safe Design: The valve features fire-safe construction, providing added safety in case of a fire hazard.

• Oil & Gas Industry: Ideal for controlling the flow of hydrocarbons, natural gas, and other fluids in pipelines, refineries, and offshore platforms.
• Chemical Processing: Designed for handling corrosive chemicals, acids, and other aggressive fluids, this valve ensures safe and efficient operation in chemical plants.
• Power Generation: Used in steam, water, and gas control systems in power plants, offering high sealing performance in high-pressure and high-temperature environments.
• Water Treatment: Utilized in water distribution, sewage treatment, and desalination plants, providing reliable flow control in both clean and wastewater systems.
• Mining and Slurry Systems: Perfect for handling abrasive slurries, ensuring long-lasting performance even in the harshest conditions.
• HVAC Systems: Employed in industrial heating, ventilation, and air conditioning systems for precise regulation of air and fluid flow.

Superior Sealing Performance:

2. • The multi-level metal hard sealingtechnology ensures excellent shut-off capability, even in high-pressure, high-temperature, and abrasive media applications. The metal sealing surfaces provide enhanced durability and resistance to wear over time.

High Pressure and Temperature Tolerance:

4. • Designed for high-pressureand high-temperature environments, this valve can handle pressures up to PN16 and temperatures from -196°C to 550°C, making it suitable for a wide range of industrial applications.

Leakage-Free Operation:

6. • The metal-to-metal sealing mechanism guarantees a leak-tight seal, ensuring efficient and safe operation, particularly in critical systems where leaks cannot be tolerated.

Robust and Durable:

8. • With its flanged connectionand high-quality materials, the valve offers long-term durability and resistance to harsh environmental conditions, reducing the need for frequent replacements and maintenance.

Fire-Safe Design:

10. • The fire-safe construction ensures that the valve continues to operate under extreme conditions, providing enhanced safety in industries where fire hazards are a concern.

Corrosion and Erosion Resistance:

12. • The valve’s materials are highly resistant to corrosion and erosion, making it an ideal solution for handling aggressive chemicals, acids, and other challenging media in the chemical, oil, and gas industries.

Cost-Effective:

14. • Thanks to its long lifespanand minimal maintenance requirements, the Flanged Multi-Level Metal Hard Sealing Butterfly Valve is a cost-effective solution for long-term, high-performance flow control.

• Size Range: Available in sizes from DN50 (2") to DN2400 (96")or custom sizes based on project requirements.
• Pressure Rating: Suitable for working pressures up to PN16, with the option for higher ratings available.
• Temperature Range: -196°C to 550°C (depending on material selection).
• Materials: Body materials include stainless steel, carbon steel, and alloy steel, with optional coatings for corrosion resistance. The sealing surfaces are made from hardened steelfor superior durability.
• Actuation Options: Manual, electric, or pneumatic actuators can be selected to match operational needs.
• Flow Direction: Bidirectional flow capability, allowing for flexible installation.
• Fire-Safe Certification: Compliant with API 607or API 6FA fire-safety standards.

The Flanged Multi-Level Metal Hard Sealing Butterfly Valve operates by rotating the butterfly disc to control the flow of media through the valve. As the valve is opened, the disc rotates in a quarter-turn motion, allowing fluid to flow freely through the pipeline. When the valve is closed, the multi-level metal sealing system ensures a tight shut-off, preventing any leakage and providing a durable and long-lasting seal.

Why Choose Our Flanged Multi-Level Metal Hard Sealing Butterfly Valve?

• Reliable Performance: Built to handle high-pressure, high-temperature, and aggressive media, this valve guarantees consistent and reliable performance in even the toughest industrial environments.
• Easy Installation and Maintenance: The flanged connection simplifies installation, while the robust design reduces the need for frequent maintenance, saving both time and costs.
• Custom Solutions: We offer customizable valve solutionsto meet specific requirements, ensuring that our product fits perfectly into your system.
