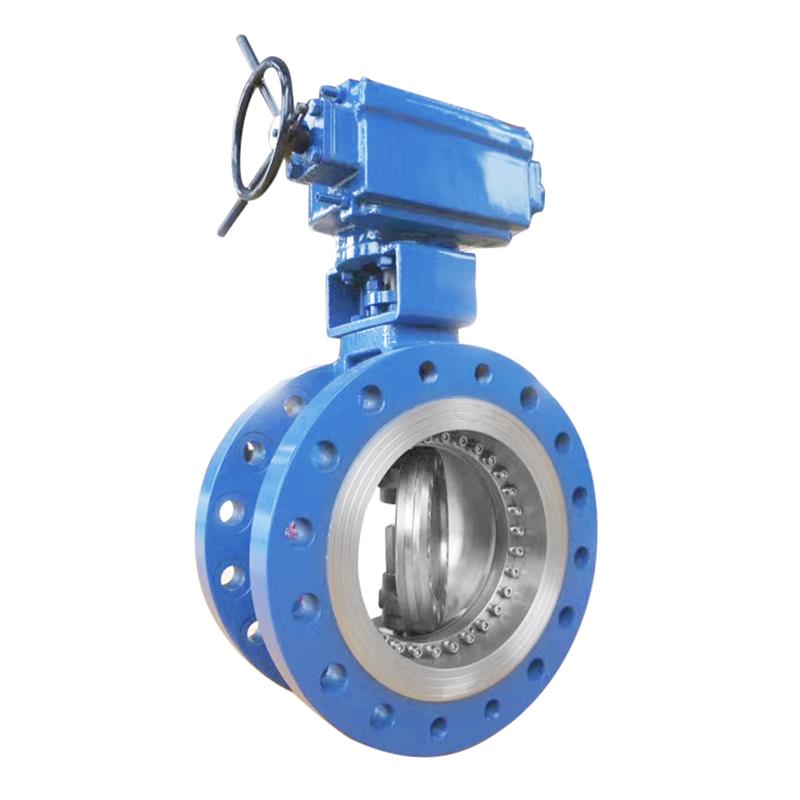

Worm Gear Bidirection Pressure Butterfly Valve

• Worm Gear Actuation: The worm gear actuatorensures precise and smooth valve operation, even under high-pressure conditions. It provides easy manual control and allows for fine adjustments for optimal flow regulation.
• Bidirectional Pressure Resistance: Designed to handle pressure from both directions, this valve ensures efficient operation and reliability, even when the direction of the fluid flow changes.
• Durability: Constructed from high-quality materialssuch as ductile iron, carbon steel, or stainless steel, the valve is engineered for durability and resistance to wear, corrosion, and pressure fatigue.
• Compact and Lightweight: The valve’s butterfly designallows for a compact, lightweight solution, which saves space and is easy to install, even in constrained environments.
• Tight Shut-off: Equipped with advanced sealing technology, the valve provides a tight shut-offto prevent leakage, ensuring efficient operation and minimal water or fluid loss.
• Precise Flow Control: The valve allows for accurate flow regulation, enabling consistent performance across a wide range of applications.
• Corrosion and Erosion Resistance: The materials used are specifically chosen for their resistance to corrosionand erosion, ensuring the valve remains operational for a long period without compromising performance.
• Easy Maintenance: With its simple design and durable materials, the valve requires minimal maintenance, reducing operational downtime and costs.

• Water Treatment Plants: Used for controlling the flow of water in filtration, purification, and distribution systems, ensuring efficient and precise flow regulation.
• Oil and Gas: Ideal for pipeline systems, managing high-pressure flow and handling the challenges of bidirectional pressure in the oil and gas industry.
• Chemical Processing: Suitable for controlling the flow of chemicals, acids, and other aggressive fluids in chemical processing systems.
• HVAC Systems: Employed in HVAC systems to regulate fluid flow for cooling and heating applications, ensuring efficient temperature control.
• Irrigation Systems: Used in irrigation systems to precisely control water flow, providing an efficient means of water distribution.
• Industrial Pipelines: Perfect for industrial pipeline applications, especially those where flow direction may change, and tight shut-off is essential.

1. Bidirectional Pressure Resistance:
   • The valve is engineered to handle pressure in both directions, making it a versatile choice for systems where fluid flow direction can change.
2. Worm Gear Precision:
   • The worm gear actuatorprovides smooth and precise operation, allowing for accurate flow control and easy manual operation.
3. High Durability:
   • Made from high-quality materials like stainless steel, ductile iron, or carbon steel, the valve is built to withstand the toughest operating conditions, including high-pressure environments.
4. Leak-Proof Operation:
   • The valve's advanced sealing technology ensures a tight shut-off, reducing the risk of leakage and maintaining system efficiency.
5. Minimal Maintenance:
   • The valve is designed for low maintenance, reducing operational downtime and providing a cost-effective solution over its long lifespan.
6. Corrosion and Erosion Resistance:
   • The materials selected for this valve provide superior resistance to corrosionand erosion, ensuring the valve remains functional for years, even in harsh environments.
7. Space-Saving Design:
   • The butterfly valvedesign is compact, making it suitable for installations where space is limited, and it reduces the overall footprint of the system.
8. Versatile Applications:
   • With its bidirectional flow capabilities, this valve can be used in a wide variety of industries, making it highly versatile for different types of fluid control applications.

• Size Range: Available in sizes from DN50 (2") to DN2000 (80"), with custom sizes available to meet specific requirements.
• Pressure Rating: Designed for high-pressure operations, suitable for working pressures up to PN16, PN25, or higher, depending on material selection.
• Temperature Range: Suitable for temperatures ranging from -10°C to 120°C, with options available for higher temperature ranges depending on material and design specifications.
• Materials: The valve body can be made from ductile iron, carbon steel, stainless steel, with optional corrosion-resistant coatings for additional protection.
• Actuation Type: Equipped with a worm gear actuator, which can be easily operated manually for precise control or integrated with automation systems for remote operation.
• Sealing Materials: Seals made from EPDM, NBR, Viton, or other materials, depending on the type of fluid and temperature requirements.
• Connection Type: Available with flanged connections, complying with ISO 5211, ANSI, or DINstandards, making installation straightforward and compatible with most pipeline systems.
• Flow Characteristics: Provides a smooth, stable flow with minimal turbulence, ensuring efficient and consistent fluid distribution.

The Worm Gear Bidirectional Pressure Butterfly Valve operates by rotating a butterfly disc within the valve body to control the flow of fluid. The valve is equipped with a worm gear actuator that ensures smooth, precise control, even under high pressure. The bidirectional pressure resistance allows the valve to function effectively regardless of the direction of fluid flow, making it versatile for use in systems where flow direction may change.

The valve’s sealing technology ensures a tight shut-off, preventing leaks when the valve is closed, while the worm gear actuator provides easy manual operation and fine control of the flow rate. This makes it ideal for systems requiring both on/off control and precise flow regulation.

Why Choose Our Worm Gear Bidirectional Pressure Butterfly Valve?

• Precise Control: The worm gear actuatorallows for smooth, precise operation, providing accurate flow regulation and easy manual control.
• Bidirectional Flow Handling: The valve’s bidirectional pressure resistanceallows it to handle fluid flow from both directions, offering flexibility in installation and operation.
• Durability: Made from high-quality, corrosion-resistant materials, the valve is built to withstand the toughest conditions and provide reliable performance over time.
• Cost-Effective: With low maintenanceand a long lifespan, this valve offers an affordable solution for fluid control in high-pressure and bidirectional flow systems.
• Versatile Applications: Whether you’re working in water treatment, oil and gas, or HVAC systems, this valve offers versatility and reliability across a wide range of industries.
