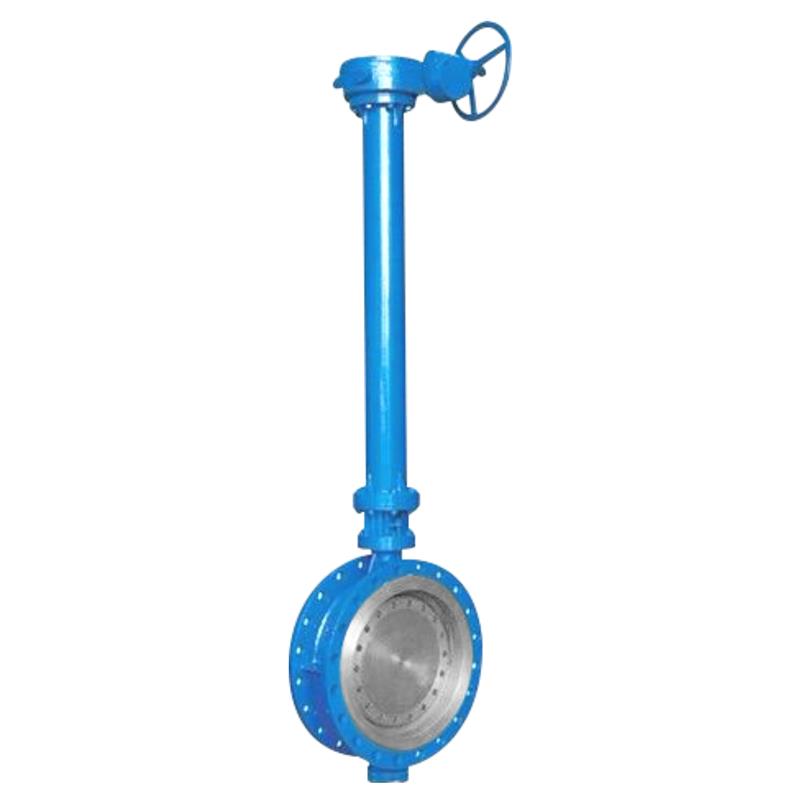

Extended Stem Butterfly Valve

• Extended Stem: The valve features an extended stem, allowing for easier operation in tight spaces, high-temperature environments, or applications with elevated piping.
• Compact and Lightweight Design: Despite the extended stem, the valve maintains a lightweight and compact design, making it easy to install and maintain in industrial systems.
• High Durability: Built to withstand high pressureand temperature conditions, the valve offers exceptional durability and reliability.
• Efficient Flow Control: Provides precise flow regulation, ensuring smooth control of various media, including liquids, gases, and slurries.
• Sealing Performance: Equipped with high-quality seals and seats to ensure tight shut-off and minimal leakage, even in demanding applications.
• Versatile Applications: Suitable for use in high-temperatureenvironments, offshore oil rigs, water treatment plants, chemical processing, and many other industrial settings.
• Corrosion Resistance: Available in materials that are resistant to corrosion, erosion, and wear, making it suitable for aggressive media like chemicals or seawater.
• Flexible Actuation: Can be paired with various actuators (manual, electric, pneumatic) to meet specific operational needs.

• Oil & Gas: Ideal for controlling flow in high-pressure and high-temperature pipelines, refineries, and offshore installations.
• Water Treatment: Used for controlling water flow in treatment plants, sewage systems, and pumping stations.
• HVAC Systems: Employed for regulating the flow of air, water, and steam in heating, ventilation, and air conditioning systems.
• Chemical Processing: Designed for use in chemical industries where controlling fluid flow with precision is essential, even in aggressive or corrosive environments.
• Power Generation: Utilized in power plants for steam and water control in boiler systems and cooling circuits.

• Enhanced Reach: The extended stem makes it easier to access and operate the valve in hard-to-reach locations.
• Improved Safety: The design of the valve reduces the need for manual intervention in hazardous environments, improving safety for operators.
• Minimal Maintenance: The valve’s robust construction and reliable seals reduce wear and tear, minimizing the need for frequent maintenance.
• High Performance: Designed to maintain a consistent performance in the most demanding conditions, providing reliable flow control with long-term durability.
• Cost-Effective: The extended stem butterfly valve offers an excellent balance of performance, durability, and cost, making it an attractive option for industrial applications.

• Size Range: Available in sizes from DN50 (2") to DN1200 (48") or customized as per client requirements.
• Pressure Rating: Suitable for working pressures up to 16 bar (PN16) or higher, depending on material selection.
• Temperature Range: Suitable for temperatures ranging from -20°C to 450°C (or higher based on materials).
• Material Options: Body materials can include cast iron, stainless steel, carbon steel, and other alloys depending on the specific needs of the application.
• Actuation Options: Can be fitted with manual, electric, or pneumatic actuators based on operational needs.

The Extended Stem Butterfly Valve works by rotating a disc within the flow path to either allow or restrict flow. The extended stem provides the advantage of operation in areas that are difficult to reach or that require extended clearance. As the actuator is rotated, the disc either opens or closes, regulating the flow of the fluid. When fully open, the butterfly valve allows unrestricted flow with minimal pressure loss, making it ideal for applications requiring efficient flow control.

Why Choose Our Extended Stem Butterfly Valve?

• Customizable Design: We offer customizations to meet specific requirements, ensuring that the valve suits your operational conditions perfectly.
• Reliable Performance: With advanced sealing technology and durable construction, the valve ensures consistent performance even in the harshest environments.
• Global Support: Our experienced engineering and support teams are available globally to provide assistance with installation, maintenance, and troubleshooting.
