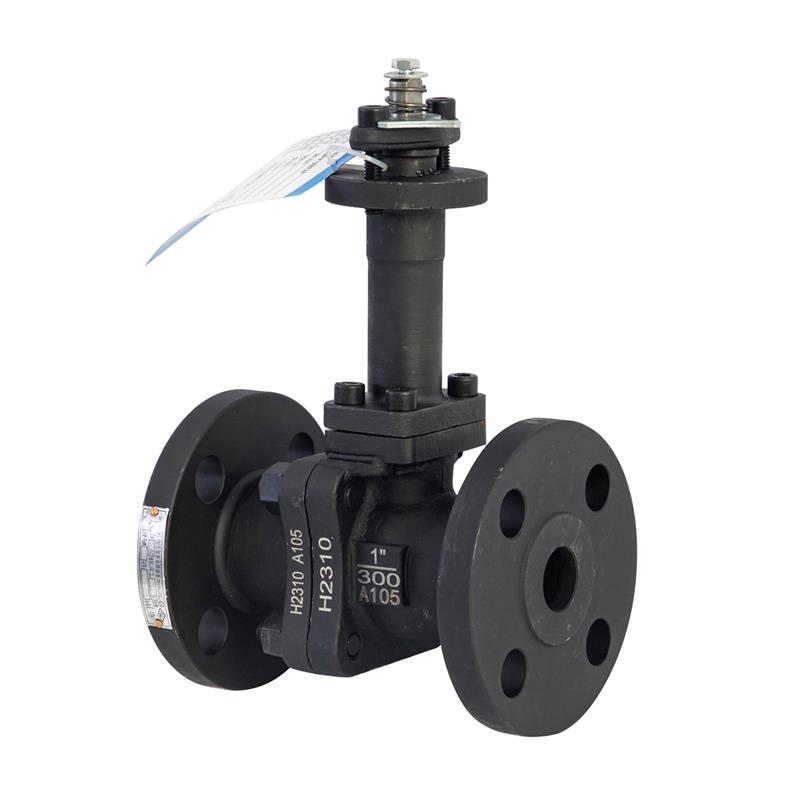

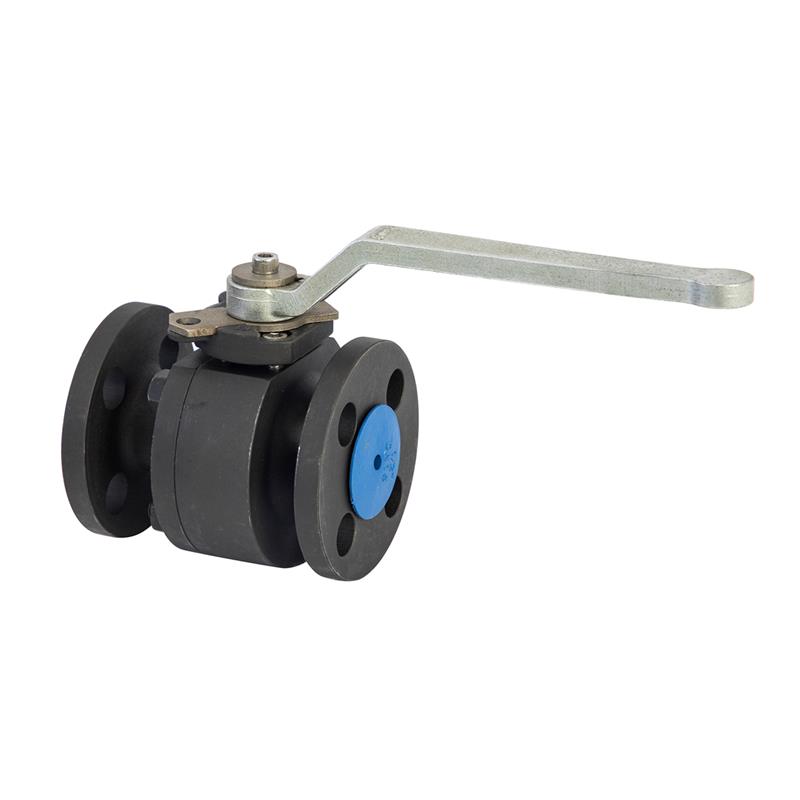

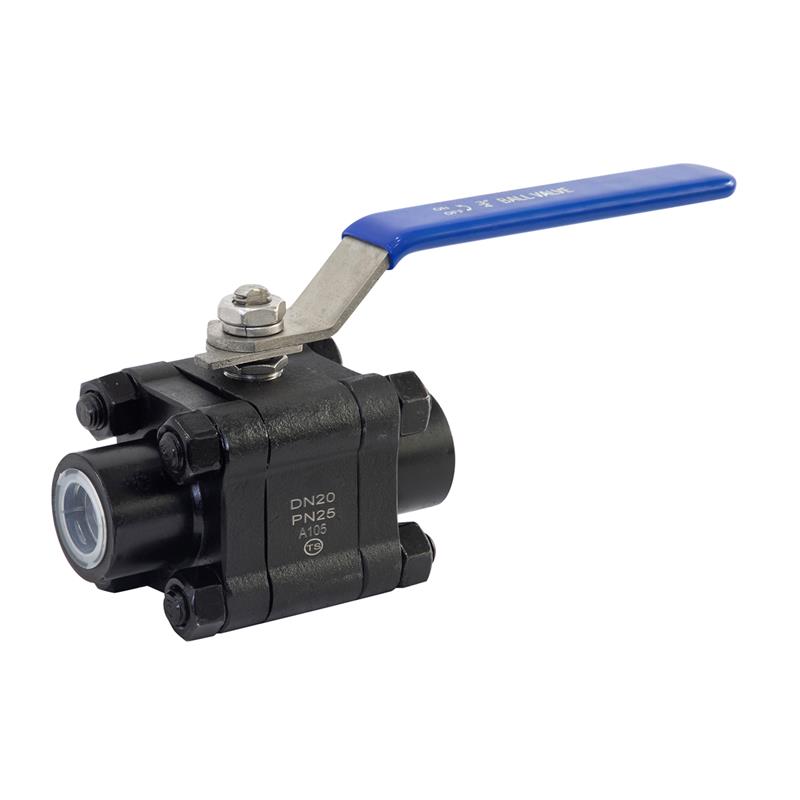

Forged Steel Ball Valve

Forged steel ball valves are robust, high-performance valves designed for demanding industrial applications. They are manufactured using forged steel (ASTM A105, A182 F304/F316, etc.) to ensure superior strength, corrosion resistance, and longevity in high-pressure and high-temperature environments.

Forged steel ball valves are robust, high-performance valves designed for demanding industrial applications. They are manufactured using forged steel (ASTM A105, A182 F304/F316, etc.) to ensure superior strength, corrosion resistance, and longevity in high-pressure and high-temperature environments.

These valves feature a floating or trunnion-mounted ball design, ensuring tight shut-off and minimal leakage. They are widely used in oil & gas, petrochemical, power plants, and other critical industries.

✔ Full/Reduced Bore options for optimal flow control

✔ Fire-safe design (API 607/6FA compliant)

✔ Anti-static & blowout-proof stem for safety

✔ Sturdy construction with forged steel body

✔ Soft or metal-seated for different applications

✔ ISO 5211 mounting pad for easy actuator installation

Parameter

Details

Body Material

ASTM A105 (Carbon Steel), A182 F304/F316 (Stainless Steel), F51 (Duplex)

Pressure Rating

Class 150 – 2500 (ASME B16.34)

Size Range

½" – 24" (DN15 – DN600)

Temperature Range

-29°C to 200°C (standard), up to 425°C (high-temp versions)

End Connections

Threaded (NPT, BSP), Socket Weld, Flanged (ASME B16.5), Buttweld

Seat Material

PTFE, RPTFE, PEEK, Metal-to-Metal (for high-temp)

Operation

Lever, Gear, Pneumatic, Electric Actuator

Standards

API 6D, ASME B16.34, BS 5351, ISO 17292

Leakage Class

ANSI Class IV / VI (bubble-tight)

✔ Oil & Gas pipelines

✔ Refineries & petrochemical plants

✔ Power generation (steam, water, gas)

✔ Chemical processing

✔ Shipbuilding & offshore platforms



✅ High durability – Resistant to wear, corrosion, and extreme pressures

✅ Zero leakage – Precision-engineered for bubble-tight sealing

✅ Customizable – Available in different materials, sizes, and actuation options

✅ Certified – Compliant with API, ANSI, ISO, and other international standards
