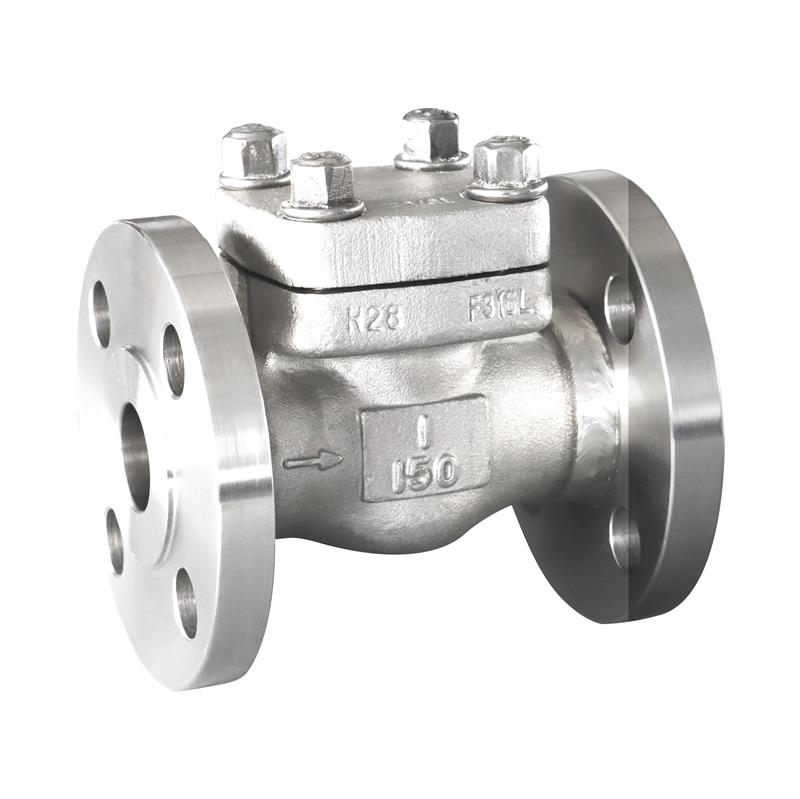

Our forged steel flanged check valves provide superior backflow prevention in critical piping systems. Engineered with heavy-duty forged construction (ASTM A105/A182) and flanged connections (ASME B16.5), these valves deliver exceptional durability and leak-tight performance in high-pressure oil & gas, petrochemical, and power generation applications.
✔ 100% Forged Steel Body – Superior strength vs. cast alternatives
✔ Swing or Lift Design – Optimal for horizontal/vertical installations
✔ Fire-Safe Option – API 6FA compliant versions available
✔ Low Maintenance – No external operator required
✔ Rapid Closure – Minimizes water hammer effects
|
Parameter |
Specification |
|
Body Material |
ASTM A105 (CS), A182 F304/F316 (SS), F51 (Duplex) |
|
Pressure Rating |
Class 150 – 2500 (ASME B16.34) |
|
Size Range |
½" – 24" (DN15 – DN600) |
|
Temperature Range |
-46°C to 425°C (standard) / up to 593°C (high-temp) |
|
Flange Standard |
ASME B16.5 (RF/FF), PN10-PN420, JIS 10K-20K |
|
Disc Material |
13% Cr Steel, Stellite 6, SS316, Monel |
|
Hinge Pin Material |
17-4PH, SS316, Hardened Alloy |
|
Design Standards |
API 6D, ASME B16.34, BS 1868 |
|
Testing Standard |
API 598 (Shell & Seat Test) |
Tilting Disc Design – Reduces slam and wear (optional)
Spring-Assisted Closure – For fast response (special order)
Full Port Opening – Minimum flow restriction
Inspectable Design – Optional body access cover
Anti-Slam Option – For water hammer prevention
Oil & Gas: Pipeline systems, compressor stations
Power Generation: Boiler feed, condensate lines
Chemical Processing: Corrosive media service
Water Treatment: High-pressure pump discharge
Marine/Shipbuilding: Seawater cooling systems
✅ Longer Service Life – Hard-faced sealing surfaces
✅ Leak-Tight Performance – Metal-to-metal or soft seats
✅ Global Certifications – API, PED, ISO, NACE MR0175
✅ Custom Solutions – Special materials, extended bodies
